Tayal Electronics

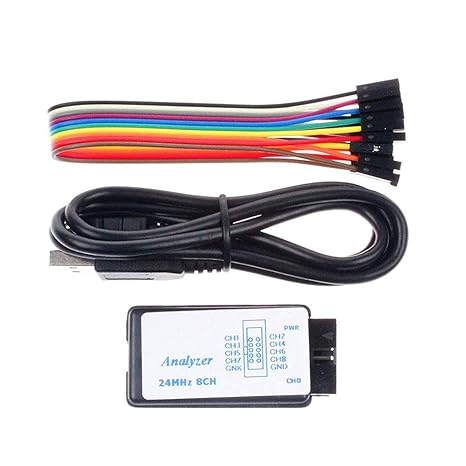

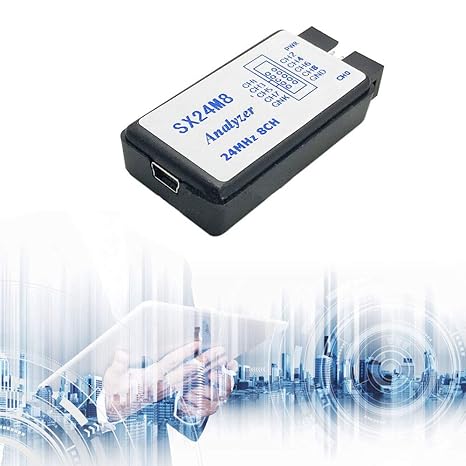

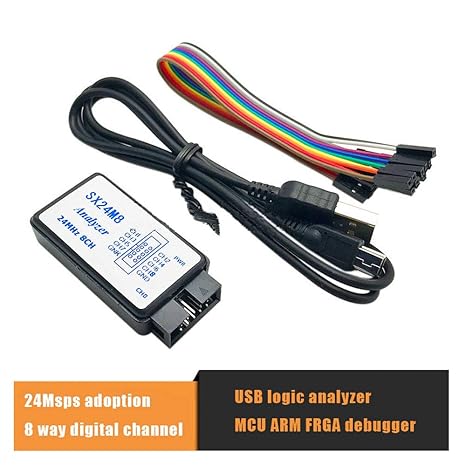

USB Logic Analyzer
USB Logic Analyzer
Regular price
Rs. 449.00
Regular price
Sale price
Rs. 449.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported for PulseView.
- Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
- The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions.
- A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.

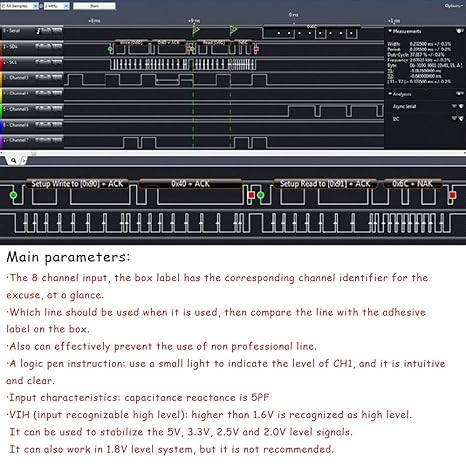

- UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
Product description
This item is an logic analyzer designed to be compatible with Saleae Logic Analyzer software.This item is also supported by the software by Sigrok called PulseView.
Specifications:
Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended
Input Impedance: 1Mohm || 10pF (typical, approximate)
Crystl: +/-20ppm, 24MHz
Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz)
Note:
The installation of electronic modules requires basic knowledge and requires a certain electronic professional foundation and hands-on ability. Please purchase carefully!
