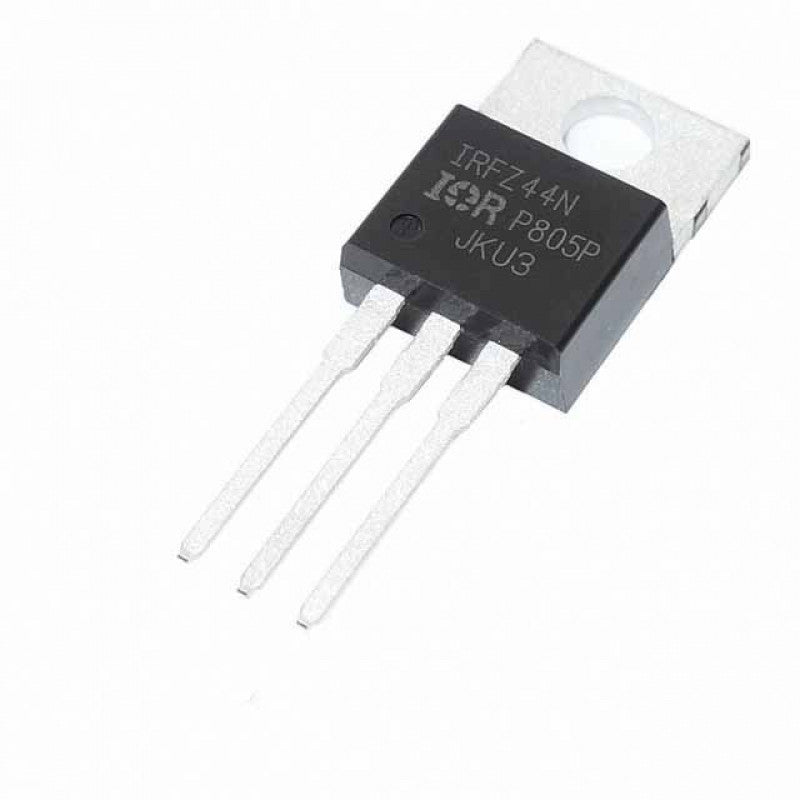

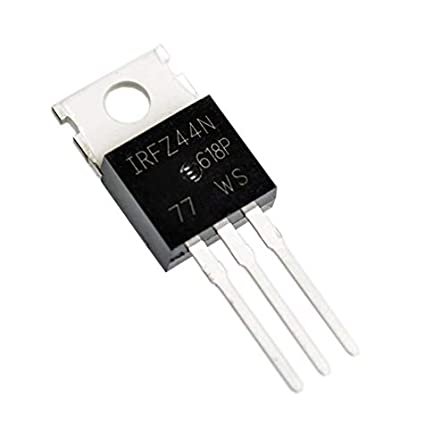

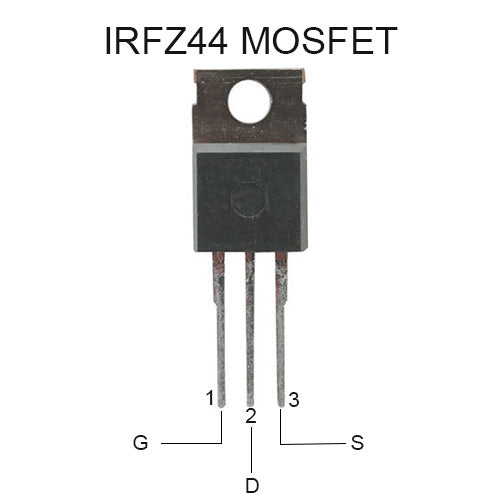

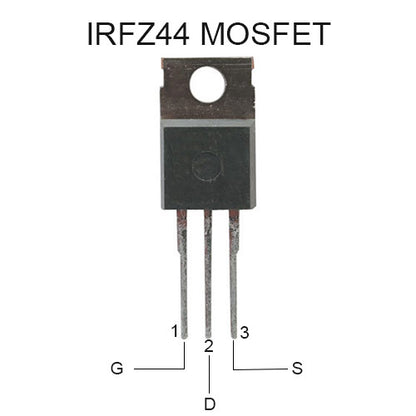

IRF Z44 Mosfet Transistor

According to the IRFZ44 datasheet this is a third generation Power MOSFET that provide the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.

Features and Specifications:-

Small signal N-Channel MOSFET Continuous Drain Current (ID) is 49A at 25°CPulsed Drain Current (ID-peak) is 160AMinimum Gate threshold voltage (VGS-th) is 2VMaximum Gate threshold voltage (VGS-th) is 4VGate-Source Voltage is (VGS) is ±20V (max)Maximum Drain-Source Voltage (VDS) is 55VRise time and fall time is about 60ns and 45ns respectively. It is commonly used with Arduino, due to its low threshold current. Available in To-220 package

Applications:-

Switching high power devices Control speed of motors LED dimmers or flashers High Speed switching applications Converters or Inverter circuits Power Mosfet (New & Original) Suitable for Servicing/Repairing for Car Audio Amplifier, DC-DC, AC-DC, DC- AC Converter, Solar Charge Controller, Inverter, Home UPS, On Line UPS etc.

• Advanced Process Technology, High-efficiency, Ultra Low On-Resistance, Fast switching capability, 175°C Operating Temperature
• Technical: N-CHANNEL 60V - 0.028Ω - 35A - 150W - TO-220
