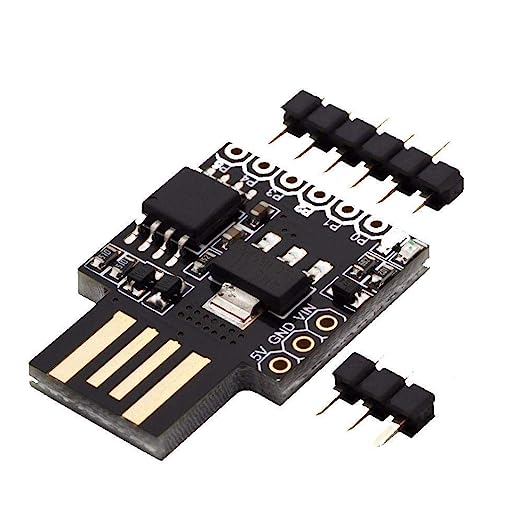

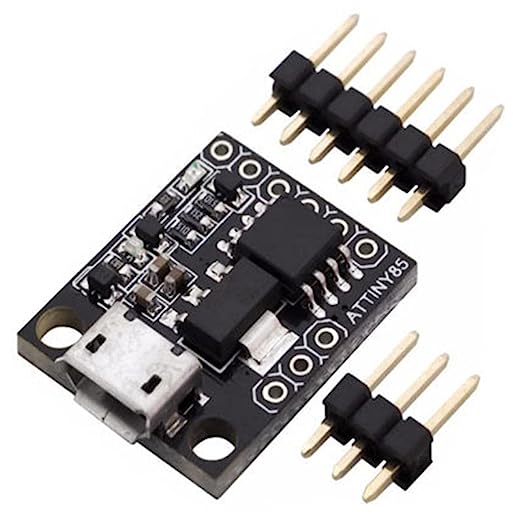

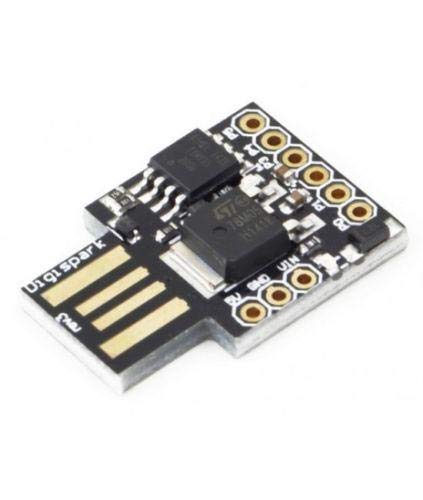

ATTINY85V2 Digi spark ATTiny85 USB Development Board

The ATtiny85 based mini development board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this ATTINY85 USB Development Board is a great way to jump into microcontroller electronics.

ATtiny85 based microcontroller development board come with the USB interface. Coding is similar to Arduino, and it uses the familiar Arduino IDE for development. This is a Digi spark clone.

It has 6 port with several functions. Depending on the programming (with Arduino IDE) can it have 6 digital I/O, 4 analog inputs or 3 PWM outputs. It can be powered by a USB port or an external power supply of 6-35V DC.

Specifications

8K flash memory (about 6k after bootloader).

I2c and SPI (vis USI).

PWM on 3 pins (more possible with software PWM).

ADC on 4 pins.

Power led and test / status led (on pin0)

Features

1. Non-volatile Program and Data Memories
2. 8K Bytes of In-System Programmable Program Memory Flash
3. Endurance: 10,000 Write/Erase Cycles
4. 512 Bytes In-System Programmable EEPROM
5. 512 Bytes Internal SRAM
6. Peripheral Features

Other Detail

Brand Name: TAYAL

Item Weight: 400 grams

Manufacturer Series Number: ATTINY85V2

Number of Items: 1
