Attiny85 Mini USB Flash Drive

Product Description:-

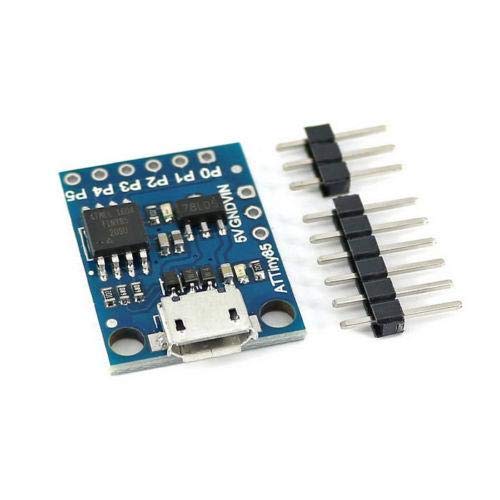

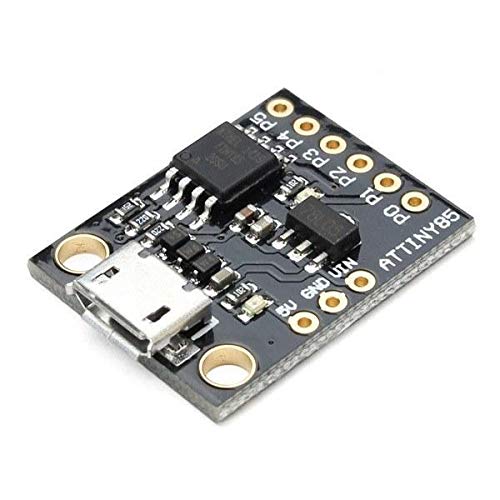

The Digi spark ATTINY85 Mini USB Development Board is similar to the Arduino but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.

Complete USB Development Board Cheap Enough to Leave in a Project. If you have never heard of the Digi spark Attiny board before, it may take you more than a moment to understand its full power and potential. So read this carefully:

• Firstly, it’s a 20MHz, AVR 8-bit microcontroller with 8 KB flash, 512 bytes of RAM

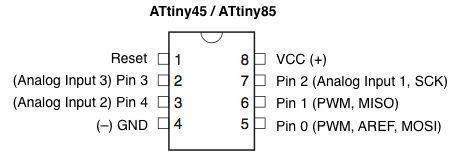

• You get up to 5 GPIOs, 4 ADCs, 2 PWMs, 1 SPI, and 1 I2C[*]
• Secondly, it’s fully compatible with Arduino
• Thirdly, it can be directly programmed via USB without needing any other programmer!

The Digi spark is shipped fully assembled except for the two included and easy to solder headers.

Note: The Board is available in Black and Blue color we will ship it Randomly

Features:-

• High Performance, Low Power AVR® 8-Bit Microcontroller
• Non-volatile Program and Data Memories
• 8K Bytes of In-System Programmable Program Memory Flash
• Endurance: 10,000 Write/Erase Cycles
• 512 Bytes In-System Programmable EEPROM
• 512 Bytes Internal SRAM
• Peripheral Features
• Two High-Frequency PWM Outputs with Separate Output Compare Registers
• USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
• 10-bit ADC
• 4 Single Ended Channels
• Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
• Speed Grade
• 0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
• Industrial Temperature Range
• Low Power Consumption
• Active Mode:1 MHz, 1.8V: 300 µA

Package Includes:-

• 1 x Digi spark ATTINY85 Mini USB Development Board
• 1 x Berg Pin
